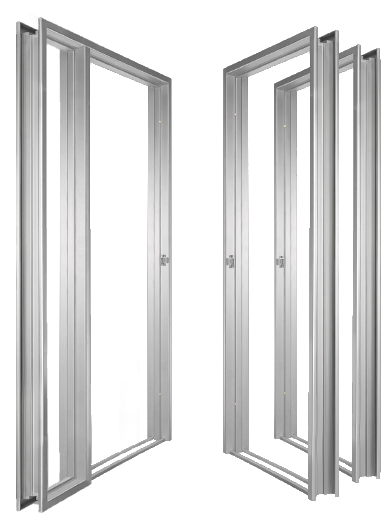

Hollow Metal Frames
A&L DOORS offers a full range of steel frames in standard or custom sizes and profiles.
-
Pressure anchor
-
“Z” anchor
-
Strap anchor
-
Adjustable anchor
-
Existing masonry anchor
-
Masonry strap anchor
-
Masonry wire anchor
Specifications
Steel frames are available for dry wall or masonry applications in 12, 14, 16, and 18 gauge for 1 3/4" (45 mm) doors and in 22 gauge for 1 3/8" (35 mm) doors. All standard frames are manufactured from galvannealed steel and are reinforced to receive specified architectural hardware in accordance to ANSI A115 standards.
Frames are also available in stainless steel, lead-lined (x-ray) and G90 galvanized steel. A&L DOORS also offers a full line of frames with thermal break for cold climate exterior applications
Sizes available in house
Throat: 3‑3/4, 4‑5/8, 4‑7/8, 5‑1/8, 5‑3/8, 6‑1/8, 6‑7/8, 7‑1/4, 7‑3/4
ADJ.:up to 11‑3/4
Width:
Single door from 1'0" up to 4'0" and 2" increments
Double door from 4'0" up to 8'0"
Height: 6'0", 6'8", 7'0", 7'10", 8'0"
Other non-standerd sizes available on request
| RECOMMENDED USES | Light Duty | Standard Duty | Medium Duty | Heavy Duty | Extra Heavy Duty |
|---|---|---|---|---|---|
| DW/MA-12 | |||||
| DW/MA-14 | |||||
| DW/MA-16 | |||||
| DW/MA-18 | |||||
| DW/MA-22 |
-
45 DEGREE
HOSPITAL STOP -
90 DEGREE
HOSPITAL STOP
Door Construction
- 12, 14, 16, 18 or 22 gauge galvannealed steel.
- Knock down or welded-up corners.
- 10 gauge high frequency dual purpose hinge reinforcement with return bend for added strength. Can easily be converted to accommodate heavy weight hinges.
- 18 gauge ASA strike reinforcement with closed back.
- 18 gauge floor anchor.
