Custom Doors

A&L DOORS offers a full range of Custom Doors and Frames, in any Size or Profile.

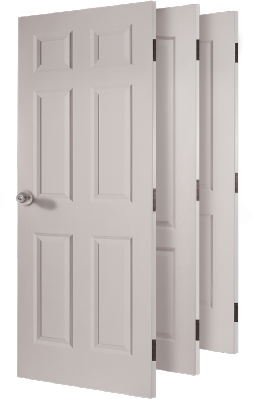

H.M. EMBOSSED DOORS

SPECIFICATIONS

The Hollow Metal Embossed Series six-panel design provides classic elegance that enhances your residential or commercial project. Door construction provides a seamless face, free of welding marks. Beyond its elegant classic appearance, the Embossed Series can also be fire labeled for up to 3 hours. Standard doors are 13⁄4 in. (45 mm) thick and are available in 18 and 20 gauge galvannealed steel.

General Specifications

  • Door faces are flush and free of any joints, welds or seams.
  • Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).
  • Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
  • Door hinge reinforcements are prepared for standard weight 41⁄2” x 41⁄2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.

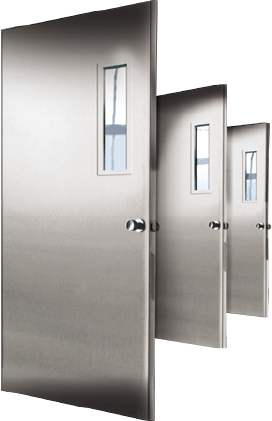

STAINLESS STEEL DOORS

SPECIFICATIONS

The Stainless Steel Series is available in numerous configurations. We offer standard, ready to ship products as well as engineered products for custom applications. Standard doors are 13⁄4 in. (45 mm) thick and are available in 14, 16, 18, and 20 gauge. 304 and 316 #4 finish.

General Specifications

  • Door faces are flush and free of any joints, welds or seams.
  • Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive.
  • Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
  • Door hinge reinforcements are prepared for standard weight 41⁄2” x 41⁄2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.

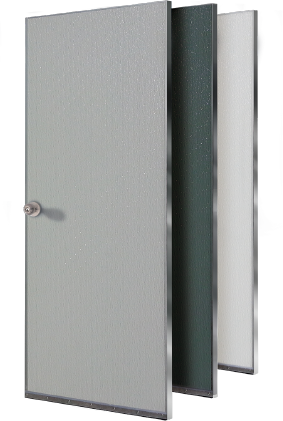

FRP DOORS

SPECIFICATIONS

The FRP Door System is a Fiberglass Reinforced Polyester door and aluminum frame intended primarily for exterior openings such as schools, restaurants, or any opening in high use and abuse areas.

The hurricane rated FRP Door System is a Fiberglass Reinforced Polyester (FRP) door and aluminum frame that is resistant from hurricane force winds and debris. Perfect for anywhere a strong, light-weight opening is required to withstand abuse.

The fire rated FRP Door complements our standard FRP door, but features a fire-resistant composite or mineral core that can be used in openings rated up to 90 minutes.

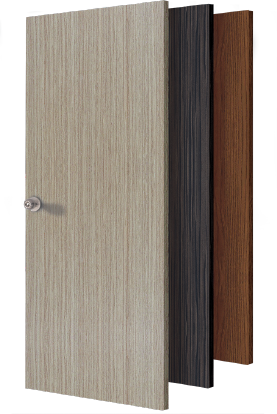

LAMINATED DOORS

Bonded Plastic Laminate Particleboard Core Door

High Pressure Laminate opens a whole new way to look at "wood" doors. The end user gets exactly what they are looking for with none of the variations involved with wood. Plastic Laminate is available from Wilsonart, Pionite, Formica, Nevamar and Arborite. FLM constructs all of our Plam doors using a layer of High Density Fiberboard to prevent telegraphing. Edges can be matching laminate or stained / painted.

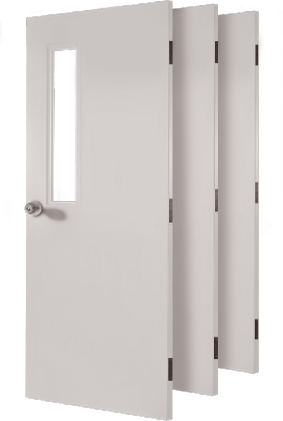

STC STEEL DOORS

SPECIFICATIONS

acoustic steel doors and frames combine outstanding sound transmission loss with the appearance of standard hollow metal products. Doors are provided complete with acoustic steel frames, perimeter and bottom seals.

Testing of acoustic door/frame units by independent laboratories complies with the most up-to-date standards on the continent. Fire labelled products have been tested in accordance with NFPA-80 and are certified by Underwriters Laboratories and Warnock Hersey International. Fire labelled products may be supplied in singles or in pairs.

Soundproof steel doors are available 1 3/4" thick from STC 33 to STC 53.

Soundproof doors are available at greater thicknesses from STC 54 to STC 64.

Units have been designed to accept readily available heavy weight builders hardware. Soundproof steel doors are available with acoustic zing that is factory pre-installed. Outstanding service and lead times.

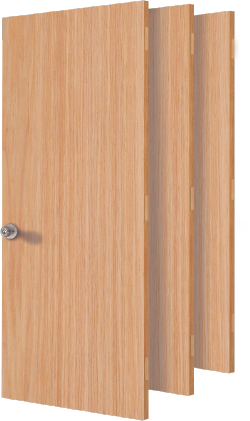

STC WOOD DOORS

SPECIFICATIONS

acoustic soundproof wood doors and steel frames set the global standard for sound transmission loss. Doors and frames have been tested as a unit and are supplied with acoustic perimeter and bottom seals.

Stock acoustic soundproof wood doors and steel frames are ready for immediate shipment.

Soundproof Doors are available 1 3/4" thick from STC 33 to STC 50.

Soundproof Doors are available at greater thicknesses from STC 51 to STC 54.

Face veneers are available in a variety of paint grade or stain grade options including birch, oak, walnut, maple and cherry.

Door edges match the veneer of the door face.

Testing of acoustic door/frame units by independent laboratories complies with the most up-to-date standards on the continent.

Fire rated doors are available up to 90 minutes

Units have been designed to accept readily available heavy weight builders hardware.
