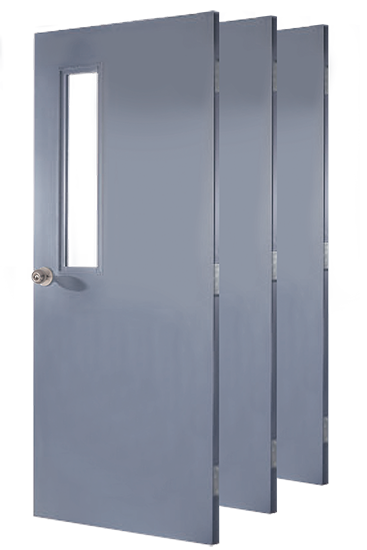

Hollow Metal DoorsStandard Strength
A&L DOORS offers a full range of Metal Doors in standard or custom sizes and profiles.
Available Cores
-
Honeycomb
-
Polystyrene
-
Polyurethane
Specifications
The Standard Series is available in numerous configurations. We offer standard, ready to ship products as well as engineered products for custom applications. Standard doors are 13⁄4 in. (45 mm) thick and are available in 14, 16, 18, and 20 gauge galvannealed steel. The Standard Series is also available in stainless steel and G90 galvanized steel. General Specifications
- Door faces are flush and free of any joints, welds or seams
- Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).
- Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
- Door hinge reinforcements are prepared for standard weight 41⁄2” x 41⁄2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.
Available Sizes:
Width: 1'0" up to 4'0" and 2" increment
Height:6'.0" ‑ 6'.8" ‑ 7'.0" ‑ 7'.10" ‑ 8'.0"
Other non-standerd sizes availble on request
Lites
-
N2
-
N3
-
N4
-
N5
-
N6
-
N7
-
N8
-
N9
Miscellaneous
-
Dutch door
-
Louver
Door Construction
- Door face sheet (galvannealed, stainless steel, G90 galvanized steel).
- Core (honeycomb, polystyrene, polyurethane)
- 10 gauge high frequency dual purpose hinge reinforcement with return bend for added strength. Can easily be converted to accommodate heavy weight hinges.
- 18 gauge inverted top channel projection welded to door skins and tack welded at each corner for extra rigidity.
- 18 gauge door closer reinforcement box.
- 18 gauge inverted bottom channel projection welded to door skins and tack welded at each corner for extra rigidity.

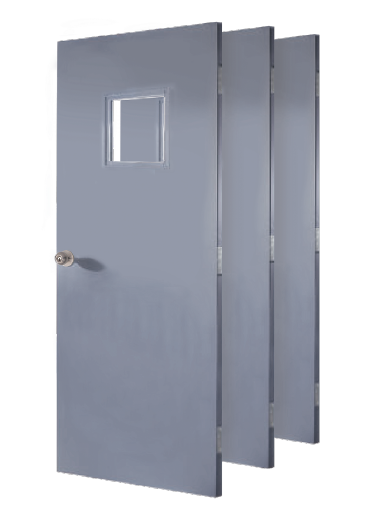

Hollow Metal Doorswith Steel Stiffeners
Available Cores
-
Honeycomb
-
Polystyrene
-
Polyurethane
-
Fiberglass
-
Rockwool
Specifications
The Stronger Series is designed for areas where added security is required. This Series offers more durability in conditions where resistance to abusive use is of a concern. Doors are reinforced with steel stiffeners, securely bonded to each face sheet. Contrary to most products in this category, our bonded stiffeners provides a seamless face, free of unsightly welding marks. All voids between stiffeners are filled with core material. Standard doors are 13⁄4 in. (45 mm) thick and are available in 14, 16, 18, and 20 gauge galvannealed steel. The Stronger Series is also available in stainless steel and G90 galvanized steel. General Specifications
- Door faces are flush and free of any joints, welds or seams.
- Steel stiffeners are bonded to face sheets.
- Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).
- Door edges are beveled 1/8” (3 mm) in 2” (50 mm).
- Door hinge reinforcements are prepared for standard weight 41⁄2” x 41⁄2” (114 mm x 114 mm) hinges which can easily be converted to accommodate heavy weight hinges.
Available Sizes:
Width: 1'0" up to 4'0" and 2" increment
Height:6'.0" ‑ 6'.8" ‑ 7'.0" ‑ 7'.10" ‑ 8'.0"
Other non-standerd sizes availble on request
Lites
-
N2
-
N3
-
N4
-
N5
-
N6
-
N7
-
N8
-
N9
Miscellaneous
-
Dutch door
-
Louver
| RECOMMENDED USES | Standard Duty | Medium Duty | Heavy Duty | Extra Heavy Duty |
|---|---|---|---|---|
| GenBuilt™ Plus 14 | ||||
| GenBuilt™ Plus 16 | ||||
| GenBuilt™ Plus 18 | ||||
| GenBuilt™ Plus 20 |
Door Construction
- Door face sheet (galvannealed, stainless steel, G90 galvanized steel).
- Core (honeycomb, polystyrene, polyurethane, fiberglass, rockwool).
- 20 gauge steel stiffeners at 6” o.c.
- 10 gauge high frequency dual purpose hinge reinforcement with return bend for added strength. Can easily be converted to accommodate heavy weight hinges.
- 18 gauge inverted top channel projection welded to door skins and tack welded at each corner for extra rigidity.
- 18 gauge door closer reinforcement box.
- 18 gauge inverted bottom channel projection welded to door skins and tack welded at each corner for extra rigidity.
